TC5H Hot Runner Temperature Controllers
Overview

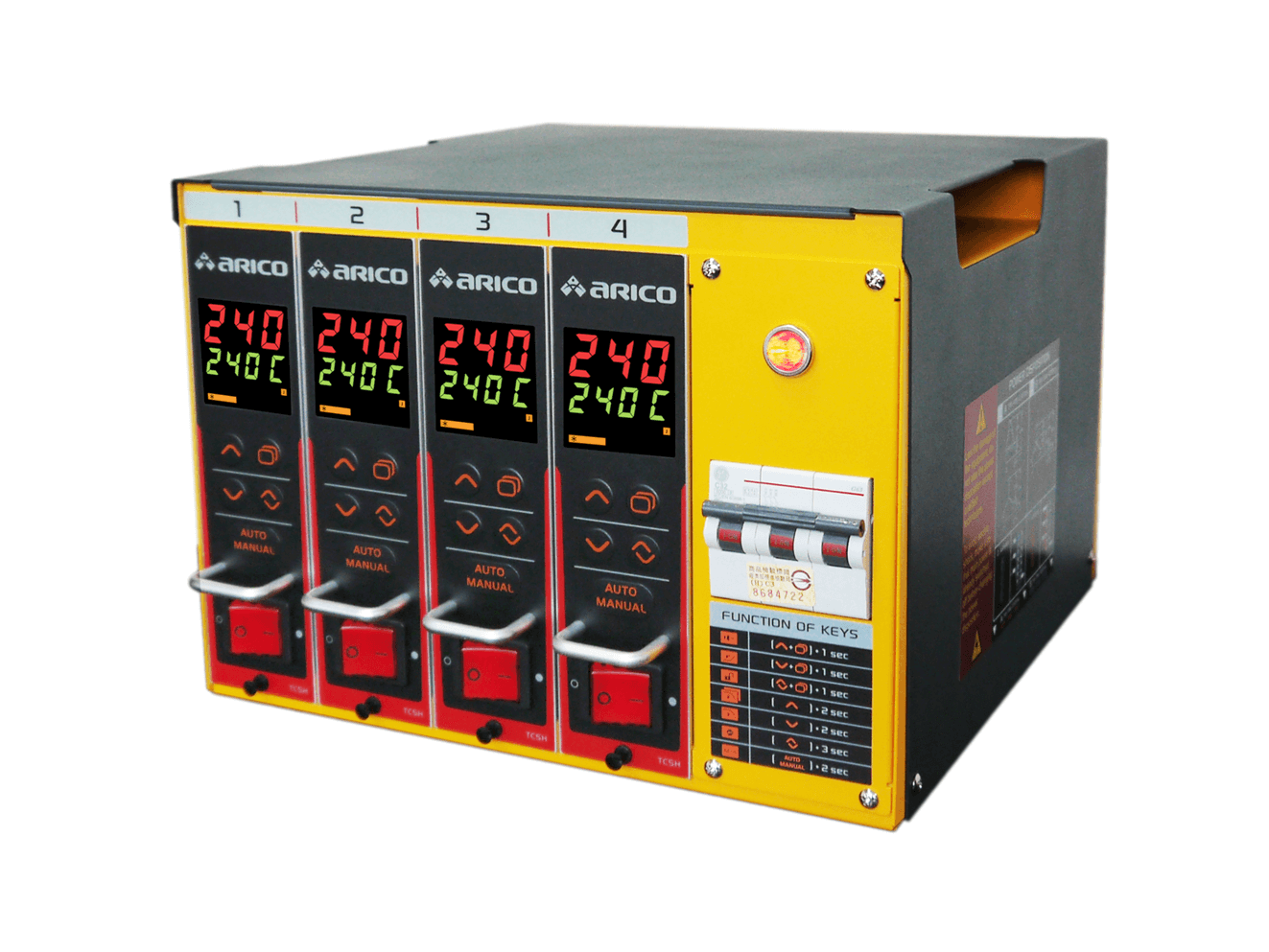

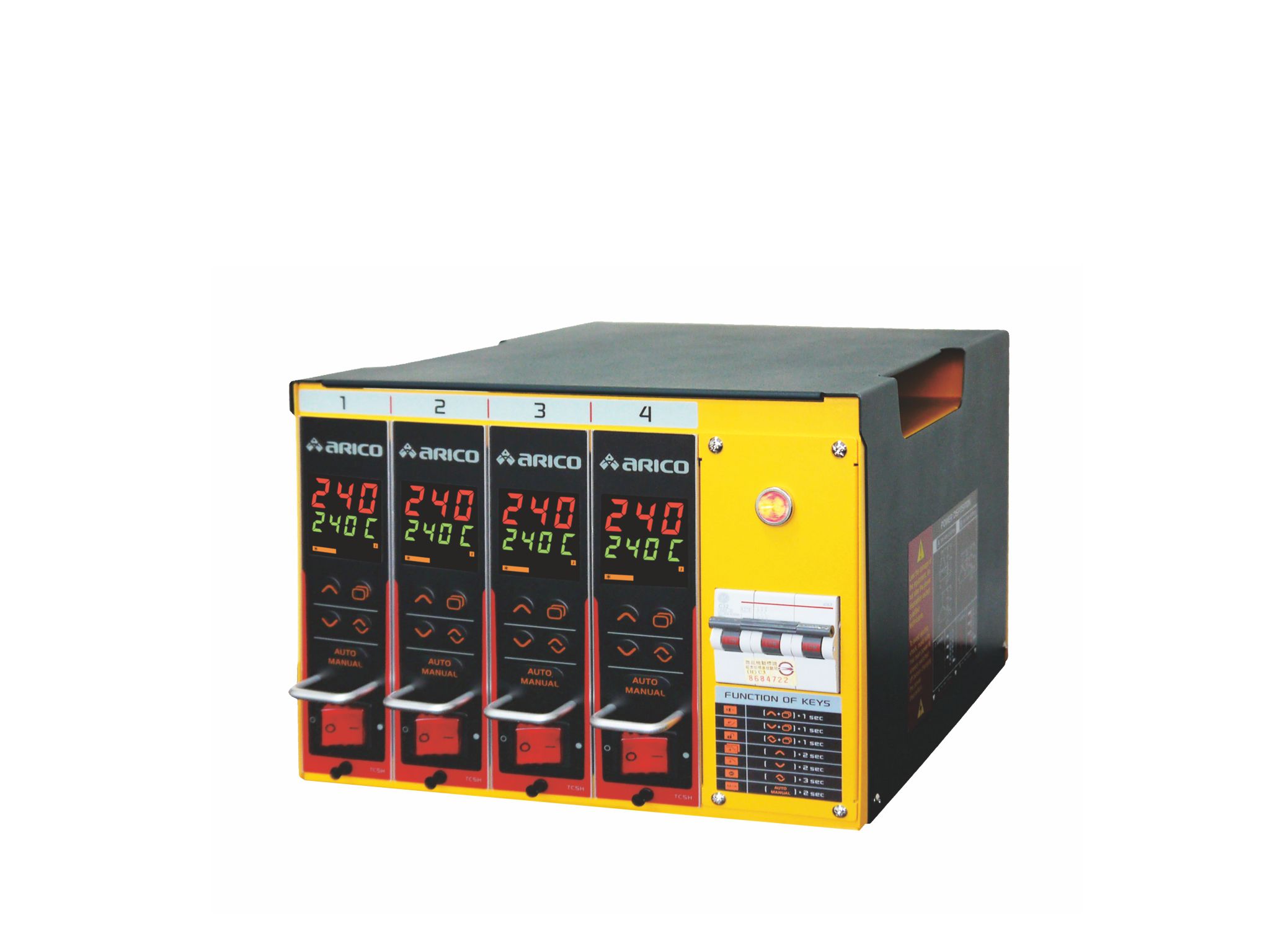

- The machine features a stackable design that allows for greater flexibility in installation space, and the handle can be concealed for a sleeker appearance.
- It also includes a built-in NFB switch and cooling fan, ensuring temperature stability. The device supports quick switching between 230V/380V power input, uses a high-quality Euro-American multi-pole connector for reliability, and utilizes automatic crimping for the terminal and wire, further enhancing reliability.
- Additionally, the machine features a standardized design that is compatible with modules from various brands.

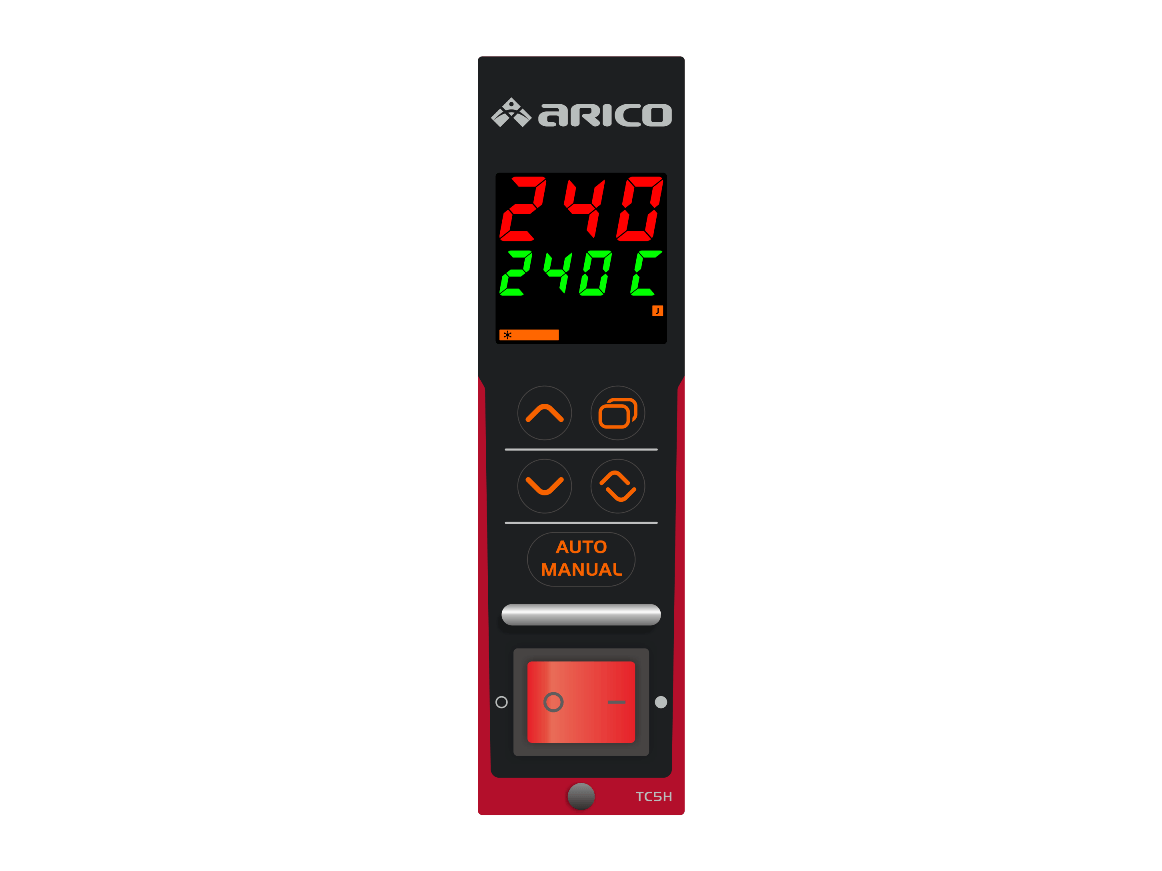

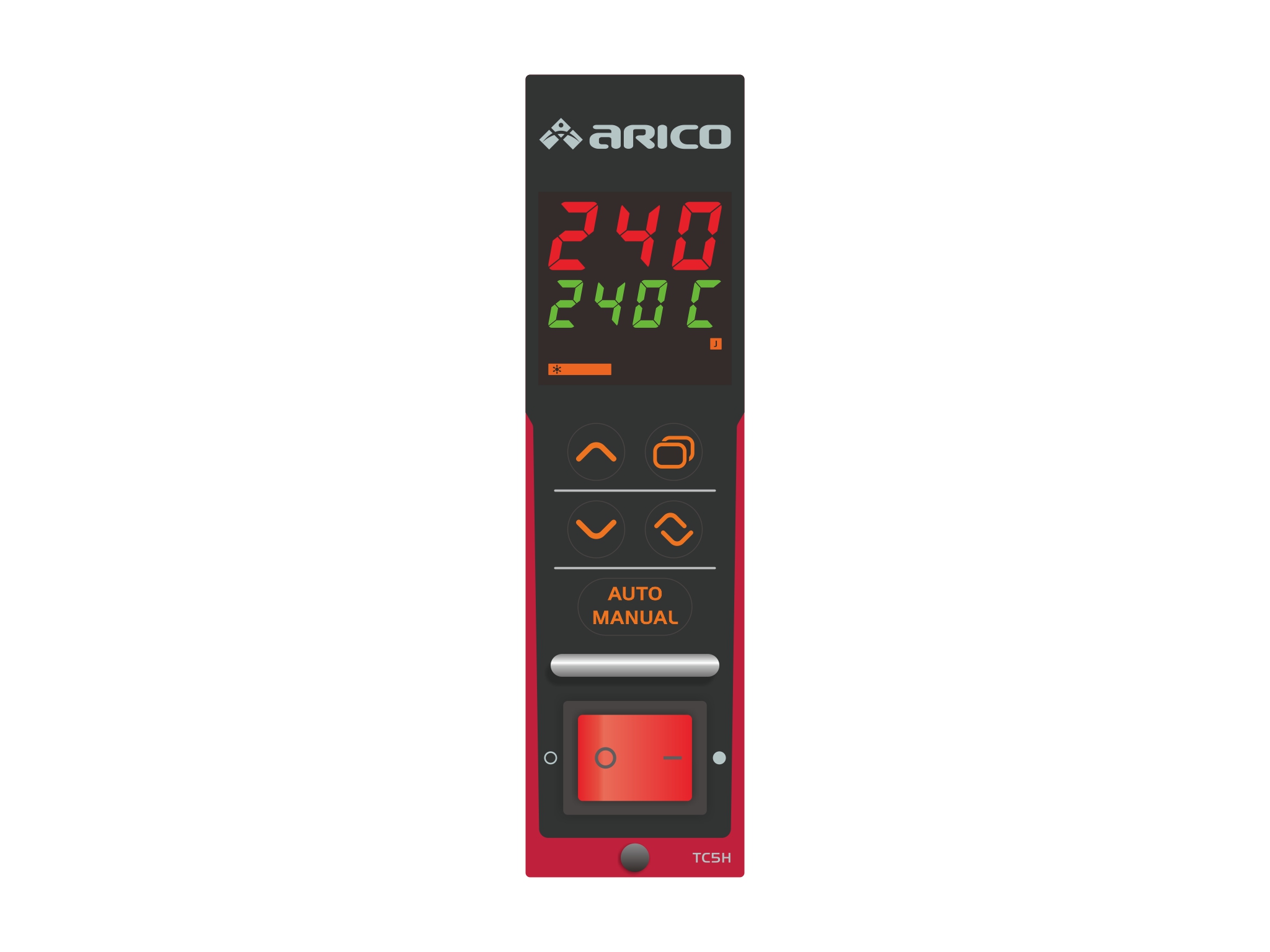

| TC5H | Module |
|
Number of Zones per Module |
1 zone |
|
Max. Current per Zone |
15A |
|
Input Power |
230Vac±10%, 50/60Hz |
|
Input Thermocouple Type |
J/K type |
|
Power Consumption |
230Vac: 3W |
|
Output Power |
3450W, 230Vac/15A(per zone) |
|
Output Mode |
Zero cross/Phase angle |
|
Control Accuracy |
±0.25% FS |
|
Measurement Accuracy |
±0.25% FS |
|
Temperature Control Range |
0~600°C/32~999°F |
|
Storage Temperature |
-20~70°C/-4~158°F |
|
Operating Temperature |
-10~50°C/14~122°F |
|
Operating Humidity |
0~80% RH(no condensate) |
|
Communication Mode |
RS-485(standard MODBUS)optional |
|
Communication Speed |
9600/19200/38400/57600/115200 |
|
Fuse |
Ultra-high speed ceramic type, 250Vac/20A, 30mm |
|
Detection Functions |
Current/Fuse open-circuit/TRIAC Short-Circuit Detection |
| TC5H | 2 zones | 4 zones | 6 zones | 8 zones | 12 zones |
| Type | T5B02 | T5B04 | T5B06 | T5B08 | T5B12 |
| Power Switch Capacity(A) | 32 | 32 | 63 | 63 | 63 |
| Output Connector | 16pinsx1 | 16pinsx1 | 24pinsx1 | 16pinsx2 | 24pinsx2 |
| Power Cable | 5.5mm²×5C×3M | 5.5mm²×5C×3M | 8mm²×5C×3M | 8mm²×5C×3M | 8mm²×5C×3M |
| Easy Input Switching | Yes | Yes | Yes | Yes | Yes |
| Dimension W×H×D (mm) | 179×204×329 | 281×204×329 | 383×204×329 | 485×204×329 | 689×204×329 |
| Specs/Model | TC5T |
TC5H |
TC5E Plus |
TC5E |
|
Number of Zones per Module |
2 zones |
1 zone |
||
|
Max. Current per Zone |
15A |
|||
|
Input Power |
230Vac±10%, 50/60Hz |
|||
|
Input Thermocouple Type |
J/K type |
|||
|
Power Consumption |
230Vac: 3W |
|||
|
Output Power |
3450W, 230Vac/15A(per zone) |
|||
|
Output Mode |
Zero cross/Phase angle |
|||
|
Control Accuracy |
±0.25% FS |
|||
|
Measurement Accuracy |
±0.25% FS |
|||
|
Temperature Control Range |
0~600°C/32~999°F |
|||
|
Storage Temperature |
-20~70°C/-4~158°F |
|||
|
Operating Temperature |
-10~50°C/14~122°F |
|||
|
Operating Humidity |
0~80% RH(no condensate) |
|||
|
Communication Mode |
RS-485(standard MODBUS)optional |
× |
||
|
Communication Speed |
9600/19200/38400/57600/115200 |
× |
||
|
Fuse |
Ultra-high speed ceramic type, 250Vac/20A, 30mm |
Ceramic fuse |
||
|
Detection Functions |
Current/Fuse open-circuit/TRIAC Short-Circuit Detection |
Fuse open-circuit |
||
Hot Runner Temperature Controller FAQ(TC5H)
Q1: What unique features does the TC5H offer for multi-stage temperature management?
A1: The TC5H (1-zone-per-module) supports synchronized multi-stage standby (soak) and ramp-up settings, ideal for achieving precise thermal balance in high-precision molds.
Q2: How can heater damage be effectively prevented?
A2: The entire series comes standard with a Soft Start function. During the initial startup phase, it utilizes pulse power delivery to eliminate moisture and mitigate inrush current, effectively extending the heater's operational lifespan.
Q3: What is the maintenance procedure if a module malfunction occurs?
A3: The entire series features a plug-in module design. Maintenance personnel only need to remove and replace the faulty module while the power is off. This process requires no rewiring, minimizing downtime.
Q4: What is the hardware diagnostic and alarm configuration for the TC5H?
A4: It features a built-in buzzer and Communication Mode as standard. It offers high protection with current, fuse-break, and TRIAC short-circuit detection for immediate on-site alerts.
